Description
NEW MACKLE HEAVY RIGID TIPPER BODY, ELECTRIC TARP AND TOWBAR FITTED (Change over)
$ 34,500.00 inc GST

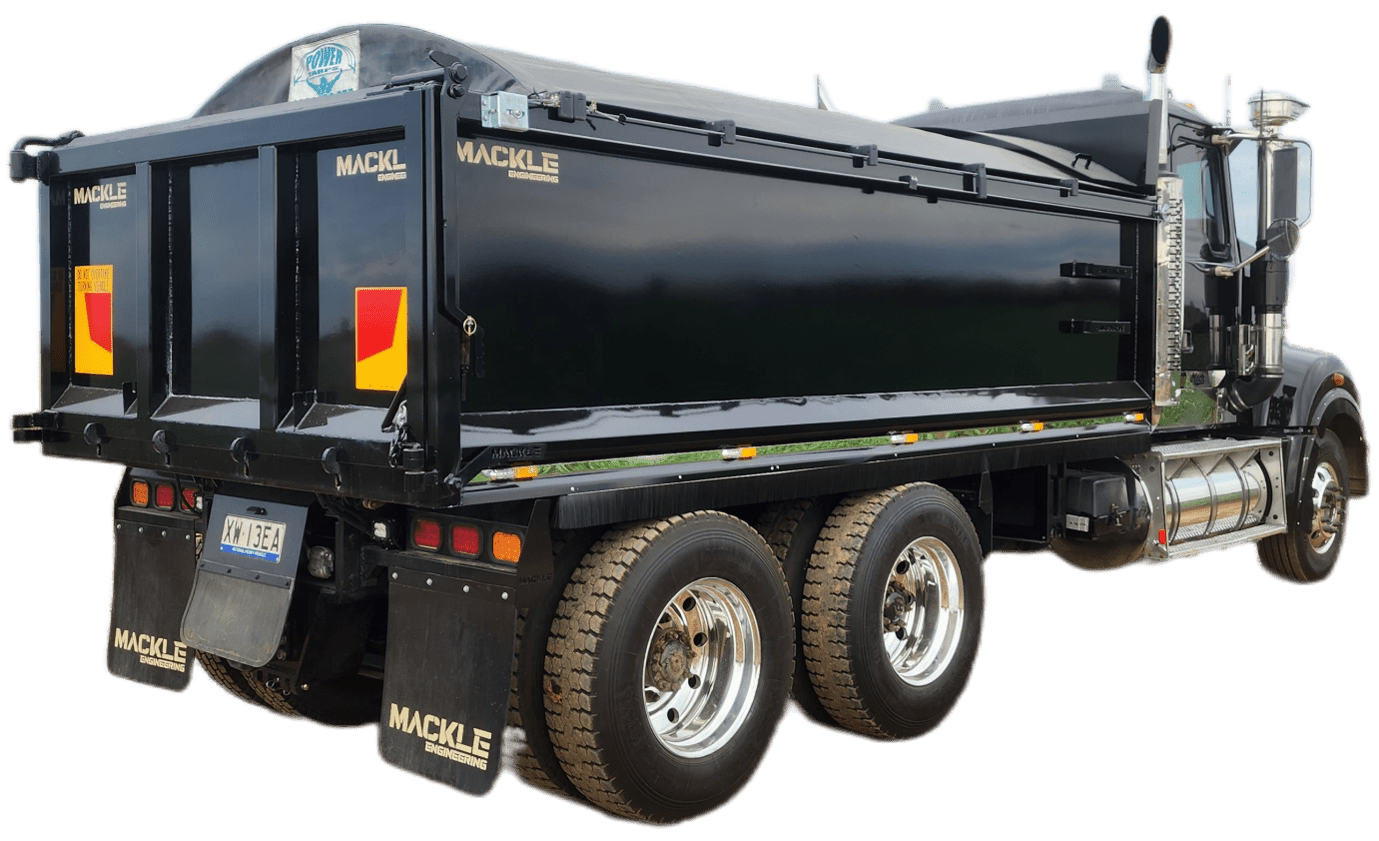

Built for Australia’s toughest conditions, the Mackle Hardox tipper body is engineered to perform on real job sites, day in and day out.
This brand-new, fully painted tipper body comes complete with tarp system, electric tarp motor, side marker lights, spray supressant and your choice of Ringfeder or pintle towbar with towing coupling.
Supply includes full fitment to your truck, with removal and replacement of your existing tipper body and towbar handled by our team.
Built by Mackle Engineering
With over 35 years of industry experience, Mackle Engineering delivers heavy-duty tipping bodies backed by proven design, quality fabrication, and practical field knowledge. Every component is selected and built to perform in harsh Australian environments.
HARDOX 500TUF Tipper Body – Specification
Body Dimensions
- Length: Up to 4700mm (TBC)
- Height: Up to 1300mm (TBC)
- Floor: 6mm HARDOX 500 TUF
- Sides: 5mm HARDOX 500 TUF
- Access steps: Driver side (passenger optional)
- Protective Hardox tarp cover
- Angle iron a top of tailgate
- Option of 45° or 90° wall to floor join
Tarp System
- Powertarps Brand
- Manual or Electric retractable tarp (12V or 24V)
- PVC or mesh options available
- Multiple colours and size options to suit your fleet
Tailgate
- VSB6 Section J4 compliant
- Two-way air-operated tailgate with spreading chains
- Pneumatic locking system
- Full reflective safety sticker kit
Surface Preparation & Paint
- Full sandblast
- Industrial 2-pack primer and paint
Spray Suppression
- 100mm spray suppressant
- Aluminium H-track mounting system
Lighting & Marking
- Roadvision LED clearance lights (5 per side)
- Reflectors (5 per side)
Notes
- Internal body is not painted
- Cabin colour matching available at extra cost
- All components supplied new and compliant with current Australian standards
Towing & Trailer Setup
- 34-ton pintle or Ringfeder towbar (upgrade options available)
- Coupling included
- Safety chain mounts (up to 45-ton rated)
- ABS extension
- Duo-Matic air connections
- 7-pin trailer plug
Fitment
- Removal of your old tipper body and towbar (Disposal available)
- Fitment of new Mackle tipper body and towbar
Why Mackle?
Because downtime costs money. Our bodies are built to work hard, last longer, and keep your truck earning. Backed by real industry experience and ongoing support, you get a setup that’s ready to perform from day one.
Call or message to discuss availability, lead times, or custom builds.
