Description

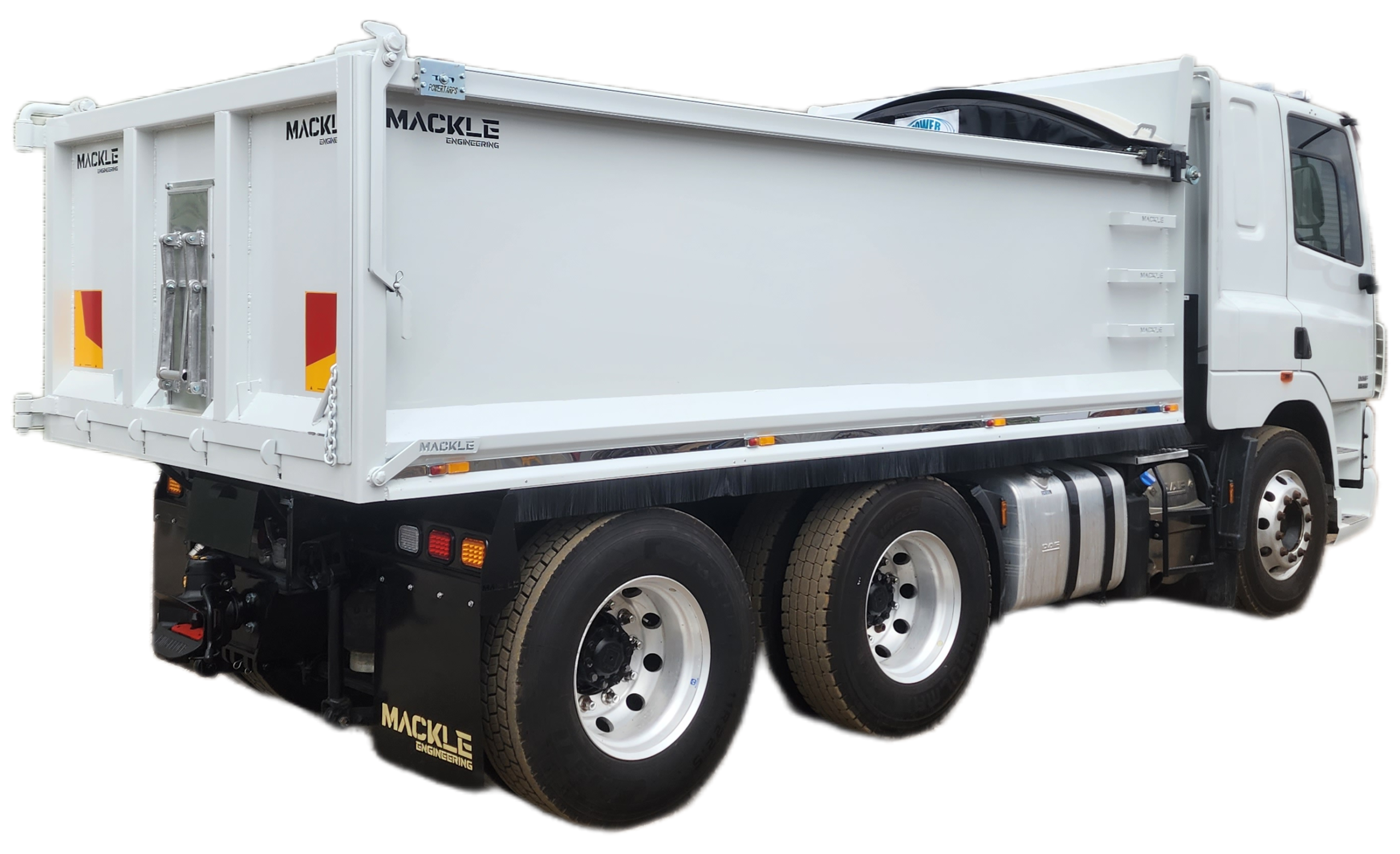

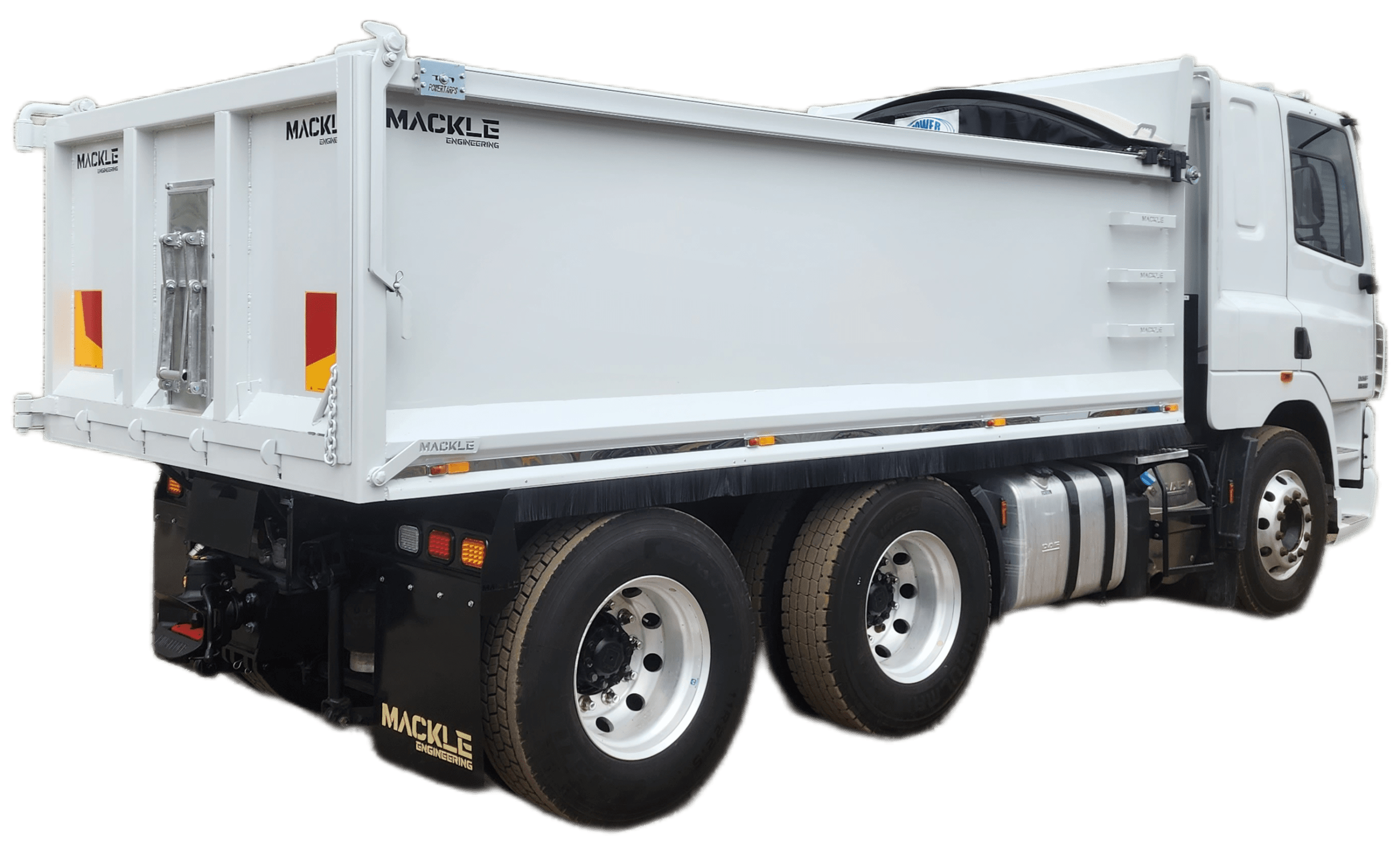

NEW MACKLE HEAVY RIGID CUSTOM TIPPER BODY FULL SETUP – DRIVE IN, DRIVE OUT (6 wheeler)
$45,990 incl GST
Built for Australia’s toughest conditions, the Mackle Hardox tipper body is designed to handle real job site demands day in, day out. This is a complete, ready-to-work package engineered for durability, reliability, and long service life.
Built by Mackle Engineering
With over 35 years of industry experience, Mackle Engineering delivers heavy-duty tipping bodies backed by proven design, quality fabrication, and practical field knowledge. Every component is selected and built to perform in harsh Australian environments.
HARDOX 500TUF Tipper Body – Specification
Body Dimensions
- Length: 4700mm (TBC)
- Height: 1100mm (TBC)
- Floor: 6mm HARDOX 500 TUF
- Sides: 5mm HARDOX 500 TUF
- Access steps: Driver side (passenger optional)
- Protective Hardox tarp cover
- Angle iron a top of tailgate
- Option of 45° or 90° wall to floor join
Tarp System
- Manual or Electric retractable tarp (12V or 24V)
- PVC or mesh options available
- In-cab operation for safe and easy use
- Multiple colours and size options to suit your fleet
Tailgate
- VSB6 Section J4 compliant
- Two-way air-operated tailgate with spreading chains
- Pneumatic locking system
- Full reflective safety sticker kit
Surface Preparation & Paint
- Full sandblast
- Industrial 2-pack primer and paint
Chassis / Subframe
- New 125×75 subframe
- 50mm pivot bar with bushes
Hydraulics
- New tipping hoist cylinder (internal mount, front mount, under mount available)
- 82L/min gear pump
- 250L/min truck & trailer valve
- PTO unit
- Hoist safety burst valve (ADR compliant)
- Complete hydraulic hose kit
- Hydraulic tank
Controls
- 12V or 24V in-cab control system
- 6-switch / 8-function in dash setup or corded pendant controller
Spray Suppression
- 100mm spray suppressant
- Aluminium H-track mounting system
Lighting & Marking
- Roadvision LED clearance lights (5 per side)
- Reflectors (5 per side)
- LED tail and reverse light kit
- Colour-matched mudguards
- Mackle mudflaps (x6)
Towing & Trailer Setup
- 34-ton pintle or Ringfeder towbar (upgrade options available)
- Coupling included
- Safety chain mounts (up to 45-ton rated)
- ABS extension
- Duo-Matic air connections
- 7-pin trailer plug
Certification
- VASS Engineering Certificate included
Notes
- Internal body is not painted
- Cabin colour matching available at extra cost
- All components supplied new and compliant with current Australian standards
Why Mackle?
Because downtime costs money. Our bodies are built to work hard, last longer, and keep your truck earning. Backed by real industry experience and ongoing support, you get a setup that’s ready to perform from day one.
Call or message to discuss availability, lead times, or custom builds.
